Washers provide a smooth bearing surface and are used under the head of a bolt and / or a nut. The chemical, mechanical, and dimensional requirements for hardened washers are covered under the ASTM specification F436. These washers are through hardened or carburized to add strength, but are physically smaller than a standard F844 flat washer. They are the recommended washer for any fastener other than a low carbon steel bolt.


Manufacturing

Fastindo Wiratama has the ability to manufacture or provide nonstandard square, rectangular, or round washers meeting the requirements of ASTM A36, A572 Grade 50, or F436.


Stock

Diameters: 1/2" - 2 3/4"
Origin: Domestic

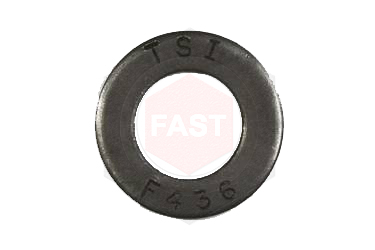

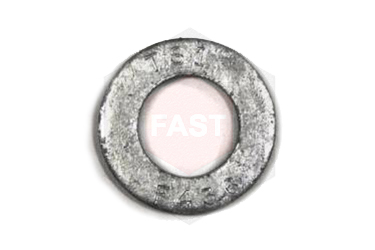

Finish: Black and hot-dip galvanized


Dimensions

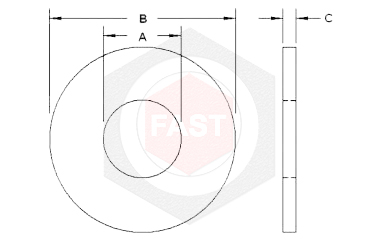

Bolt Size B A C Weight (lbs.) Per 1000 Pieces Part Numbers
Outside Diameter Inside Diameter Thickness Domestic
Min Max Black Galvanized
1⁄2 11⁄16 17⁄32 0.097 0.177 18 16440 16441
5⁄8 15⁄16 11⁄16 0.122 0.177 33 16442 16443
3⁄4 115⁄32 13⁄16 0.122 0.177 41 16444 16445
7⁄8 13⁄4 15⁄16 0.136 0.177 64 16446 16447
1 2 11⁄16 0.136 0.177 82 16448 16449
11⁄8 21⁄4 13⁄16 0.136 0.177 105 16450 16451
11⁄4 21⁄2 13⁄8 0.136 0.177 133 16452 16453
13⁄8 23⁄4 11⁄2 0.136 0.177 163 16454 16455
11⁄2 3 15⁄8 0.136 0.177 200 16456 16457
15⁄8 31⁄4 13⁄4 0.178 0.28 320 19481 19482
13⁄4 33⁄8 17⁄8 0.178 0.28 307 16458 16459
17⁄8 31⁄2 2 0.178 0.28 360 16471 16472
2 33⁄4 21⁄8 0.178 0.28 380 16460 16461
21⁄4 4 23⁄8 0.24 0.34 560 16462 16463
21⁄2 41⁄2 25⁄8 0.24 0.34 720 16464 16465
23⁄4 5 27⁄8 0.24 0.34 920 16611 16612
3 51⁄2 31⁄8 0.24 0.34 1040 16613 16614
31⁄4 6 33⁄8 0.24 0.34 1350 - -
31⁄2 61⁄2 35⁄8 0.24 0.34 1633 18490 18460
33⁄4 7 37⁄8 0.24 0.34 1880 - -
4 71⁄2 41⁄8 0.24 0.34 2200 18461 18462
Dimensions per ASTM F436
