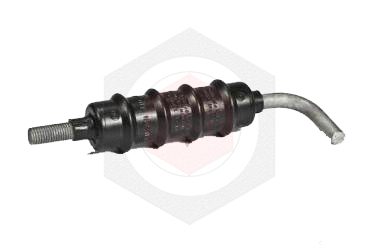

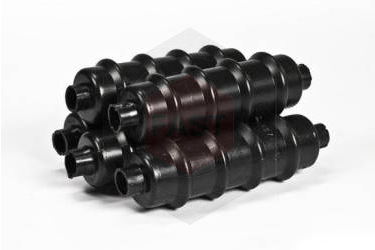

Wilson Anchor Sleeves and Contec Anchor Sleeves are high impact plastic parts used as an in place form, to create a free area when setting anchor bolts for equipment. This opening allows the anchor bolt alignment to be adjusted.
Expansion or non-shrinking grout is cast into the anchor sleeve around the bolt when equipment is set. This cost effective method allows for quick and easy final placement of equipment and structural steel. Anchor sleeves are used on a variety of projects including: power plants, paper mills, and manufacturing facilities.
Stock
We inventory a large quantity of Wilson and Contec Anchor Sleeves ready for immediate shipment.
Sizes: 1⁄2“- 3”
Material: High-Density Polyethylene

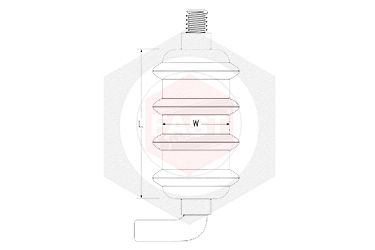

| Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Wilson Sleeves | Contec Sleeves | |||||||
| Bolt Size | Shell Size W x L | Part Number | Color Code | Shell Size W x L | Part Number | |||
| 1⁄2" | 2" x 5" | 18255 | yellow | 2" x 5" | 18296 | |||
| 3⁄4" | - | |||||||
| 5⁄8" | 2" x 7" | 18256 | white | 2" x 7" | 18297 | |||
| 3⁄4" | 18257 | |||||||
| 7⁄8" | 18258 | |||||||
| 1" | 3" x 10" | 18259 | green | 3" x 10" | 18298 | |||
| 11⁄4" | 18260 | |||||||
| 11⁄2" | 4" x 15" | 18261 | red | 4" x 15" | 18299 | |||
| 13⁄4" | 18262 | |||||||
| 2" | 4" x 18" | 18263 | blue | 4" x 18" | 18300 | |||
| 21⁄4" | 18264 | |||||||
| 21⁄2" | 6" x 24" | 18265 | brown | 6" x 24" | 18301 | |||
| 3" | 18482 | |||||||
| 4" | - | - | black | 6" x 24" | 18302 | |||
| 5" | ||||||||
