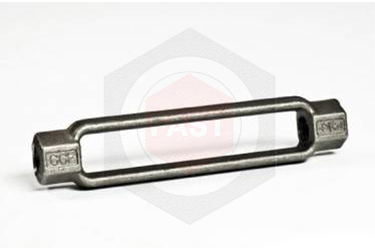

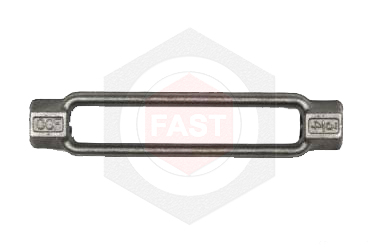

Turnbuckles are provided as components of tie rod assemblies that Fastindo Wiratama manufactures and are often used in conjunction with clevises. Turnbuckles possess right hand internal threads on one end and left hand internal threads on the other. By rotating the turnbuckle, the tie rod assembly is drawn tight.


Availability

Turnbuckles are not a stocked item but are available within a day or two. Turnbuckles are provided in both plain finished and hot dip galvanized medium carbon steel as well as stainless steel.


Dimensions

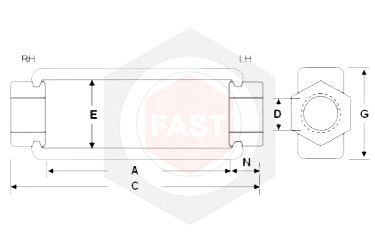

Dia. (D), in. Standard Turnbuckles Weight in Pounds Safe Working Load, Kips Part Numbers
Dimensions, Inches Length, Inches
A N C E G 6 9 12 18 24 36 ASD LRFD Black Galvanized
1⁄2 6 25⁄32 79⁄16 11⁄16 15⁄16 .65 .90 1.20 3.67 5.50 18707 18719
5⁄8 6 15⁄16 77⁄8 13⁄16 11⁄2 .98 1.35 1.58 2.43 5.83 8.75 18708 18720
3⁄4 6 11⁄16 81⁄8 15⁄16 123⁄32 1.45 1.84 2.35 3.06 4.25 8.67 13.0 18709 18722
7⁄8 6 15⁄16 85⁄8 13⁄32 17⁄8 1.85 3.02 4.20 5.43 12.0 18.0 18710 18723
1 6 17⁄16 87⁄8 19⁄32 21⁄32 2.60 4.02 4.40 6.85 10.0 15.5 23.3 18711 18724
11⁄8 6 19⁄16 91⁄8 113⁄32 29⁄32 4.06 4.70 6.10 19.3 29.0 18712 18725
11⁄4 6 19⁄16 91⁄8 19⁄16 217⁄32 4.00 6.49 7.13 11.30 13.1 25.3 38.0 18713 18726
13⁄8 6 113⁄16 95⁄8 111⁄16 23⁄4 6.15 29.0 43.5 18714 18727
11⁄2 6 17⁄8 93⁄4 127⁄32 31⁄32 6.15 9.70 9.13 16.80 19.4 35.0 52.5 18715 18728
15⁄8 6 21⁄2 11 131⁄32 3⁄32 9.80 40.9 61.3 - -
13⁄4 6 21⁄2 11 21⁄8 39⁄16 9.80 15.3 16.0 19.5 47.2 70.8 18716 18729
17⁄8 6 213⁄16 115⁄8 23⁄8 4 14.0 15.3 62.0 93.0 - -
2 6 213⁄16 115⁄8 23⁄8 4 14.0 15.3 27.5 62.0 93.0 18717 18730
21⁄4 6 35⁄16 125⁄8 211⁄16 45⁄8 19.6 30.9 43.5 80.0 120 - -
21⁄2 6 33⁄4 131⁄2 3 5 23.3 30.9 42.4 100 150 - -
23⁄4 6 43⁄16 143⁄8 31⁄4 55⁄8 31.5 54.0 125 188 - -
3 6 45⁄16 145⁄8 35⁄8 61⁄8 39.5 161 242 - -
31⁄4 6 57⁄16 167⁄8 37⁄8 63⁄4 60.5 79.5 203 305 - -
31⁄2 6 57⁄16 167⁄8 37⁄8 63⁄4 60.5 70.0 79.5 203 305 - -
33⁄4 6 6 18 45⁄8 81⁄2 95.0 280 420 - -
4 6 6 18 45⁄8 81⁄2 95.0 280 420 - -
41⁄4 9 63⁄4 221⁄2 51⁄4 93⁄4 152 390 585 - -
41⁄2 9 63⁄4 221⁄2 51⁄4 93⁄4 152 390 585 - -
43⁄4 9 63⁄4 221⁄2 51⁄4 93⁄4 152 390 585 - -
5 9 71⁄2 24 6 10 200 491 737 - -

Dimensions per AISC Manual of Steel Construction thirteenth edition page 15-16

ASD - Allowable Stress Design (according to the AISC 9th Ed.) LRFD - Load and Resistance Factor Design (according to AISC 3rd Ed.)
