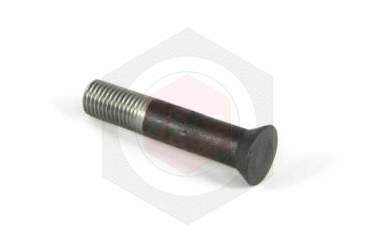

Countersunk bolts are used when a smooth surface is required. Common applications include: bridge decking, walkways, and railing.
Manufacturing:

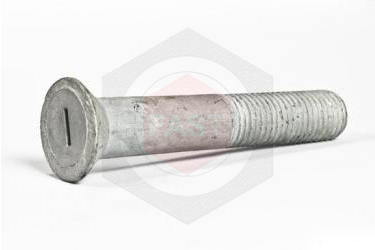

Fastindo Wiratama manufactures countersunk bolts from 1/2″ diameter through 1-1/2″ diameter in most ASTM, AASHTO, and SAE specifications including, A307 Grade A, A449, and Grade 8. Countersunk bolts have a head angle of approximately 80 degrees. Bolts are available with and without a slot in the head. Special tooling can be created to produce nonstandard head dimensions or bolt heads with your company’s name and/or logo.
Standard Thread Length:
Bolt lengths ≤ 6″: Thread length = (2 X diameter) + 1/4″
Bolt lengths > 6″: Thread length = (2 X diameter) + 1/2″
Note: Most stock hex bolts longer than 12″ in length will have 6″ of thread.

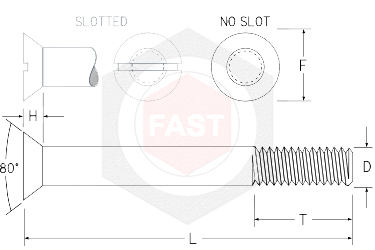

| Countersunk Dimensions | ||||||
|---|---|---|---|---|---|---|
| Bolt Diameter | D | F | H | |||
| Body Diameter | Head Diameter | Head Height | ||||
| Max | Max Edge Sharp | Min Edge Sharp | Absolute Min Rounded | Max | Min | |
| 1⁄2 | 0.515 | 0.935 | 0.905 | 0.845 | 0.269 | 0.233 |
| 5⁄8 | 0.642 | 1.169 | 1.132 | 1.066 | 0.336 | 0.292 |
| 3⁄4 | 0.768 | 1.402 | 1.357 | 1.285 | 0.403 | 0.349 |
| 7⁄8 | 0.895 | 1.637 | 1.584 | 1.511 | 0.470 | 0.408 |
| 1 | 1.022 | 1.869 | 1.810 | 1.735 | 0.537 | 0.466 |
| 11⁄8 | 1.149 | 2.104 | 2.037 | 1.962 | 0.604 | 0.525 |
| 11⁄4 | 1.277 | 2.337 | 2.262 | 2.187 | 0.671 | 0.582 |
| 13⁄8 | 1.404 | 2.571 | 2.489 | 2.414 | 0.738 | 0.641 |
| 11⁄2 | 1.531 | 2.804 | 2.715 | 2.640 | 0.805 | 0.698 |
|
Dimensions per ASME B18.5 1990 (R 1998) |
||||||
