Beveled washers are intended for American Standard beams and channels in structural applications, to compensate for lack of parallelism. For beveled washers to be used with A325 and A490 structural bolts, please refer to F436 beveled washers.
Stock
Diameters: 1/2" - 1"
Origin: Import
Finish: Black and hot-dip galvanized

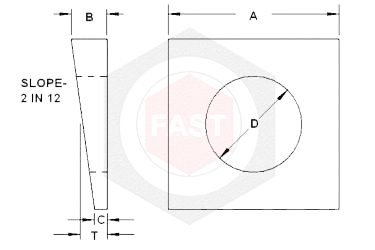

| Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Bolt Size | A | B | C | T | D | Weight (lbs.) Per 100 Pieces | Part Numbers | |
| Square Dimension | Thickness | Diameter | Black | Galvanized | ||||
| 1⁄2 | 1.25 | 0.34 | 0.12 | 0.23 | 0.56 | 7.40 | 11967 | 11968 |
| 5⁄8 | 1.50 | 0.38 | 0.12 | 0.25 | 0.69 | 12.00 | 11969 | 11970 |
| 3⁄4 | 1.50 | 0.44 | 0.19 | 0.31 | 0.81 | 13.60 | 11971 | 11972 |
| 7⁄8 | 2.00 | 0.56 | 0.22 | 0.39 | 0.94 | 32.00 | 11973 | 11974 |
| 1 | 2.00 | 0.56 | 0.22 | 0.39 | 1.06 | 30.00 | 11975 | 11976 |
| 11⁄8 | 2.25 | 0.62 | 0.25 | 0.44 | 1.25 | 31.00 | - | - |
| 11⁄4 | 2.25 | 0.72 | 0.31 | 0.52 | 1.38 | 40.00 | 17756 | 17757 |
| 13⁄8 | 2.75 | 0.78 | 0.31 | 0.55 | 1.50 | - | - | - |
| 11⁄2 | 3.00 | 0.81 | 0.31 | 0.56 | 1.62 | 46.13 | 17758 | 17759 |
