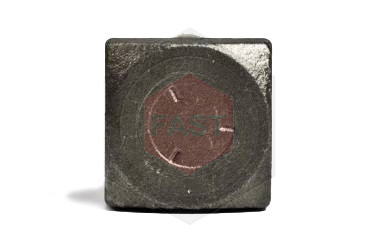

Square head machine bolts were the industry standard prior to hex bolts gaining prominence. Square bolts are now most commonly used for aesthetic purposes to provide a rustic look in a new structure or to match existing fasteners in an older structure. Square lag screws are also used for these purposes. Cross arm or machine bolts are commonly supplied for the utility industry and included an added cone point.


Manufacturing:

Fastindo Wiratama manufactures square bolts from 1/2″ diameter through 2″ diameter in most ASTM, AASHTO, and SAE specifications. Special tooling can be created to produce nonstandard head dimensions or bolt heads with your company’s name and/or logo. Fastindo Wiratama stocks square head blanks that are used for small orders or expedited deliveries.

Stock:

Fastindo Wiratama does not stock any square head machine bolts, and in most cases, square head bolts are not readily available through fastener distributors. Typically, square head bolts will need to be custom manufactured.

Standard Thread Lengths:

Bolt lengths < 6″: Thread length = (2 X diameter) + ¼″
Bolt lengths > 6″: Thread length = (2 X diameter) + ½″

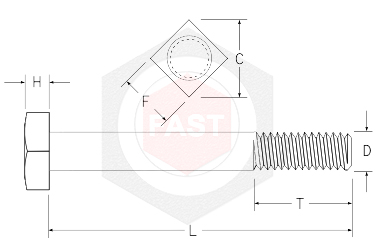

Square Head Dimensions
Bolt Diameter D F C H
Body Diameter Width Across Flats Width Across Corners Height
Max Basic Max Min Max Min Basic Max Min
1⁄2 0.515 3⁄4 0.750 0.725 1.061 0.995 21⁄64 0.348 0.308
5⁄8 0.642 15⁄16 0.938 0.906 1.326 1.244 27⁄64 0.444 0.400
3⁄4 0.768 11⁄8 1.125 1.088 1.591 1.494 1⁄2 0.524 0.476
7⁄8 0.895 15⁄16 1.312 1.269 1.856 1.742 19⁄32 0.620 0.568
1 1.022 11⁄2 1.500 1.450 2.121 1.991 21⁄32 0.684 0.628
11⁄8 1.149 111⁄16 1.688 1.631 2.386 2.239 3⁄4 0.780 0.720
11⁄4 1.277 17⁄8 1.875 1.812 2.652 2.489 27⁄32 0.876 0.812
13⁄8 1.404 21⁄16 2.062 1.994 2.917 2.738 29⁄32 0.940 0.872
11⁄2 1.531 21⁄4 2.250 2.175 3.182 2.986 1 1.036 0.964
13⁄4* 29⁄16 13⁄16
2* 215⁄16 15⁄16
* ASME only defines head dimensions up to 1-1/2". Dimensions for 1-3/4 and 2" are approximate and not covered under the ASME dimensional specifications.
Dimensions per ASME B18.2.1 1996
