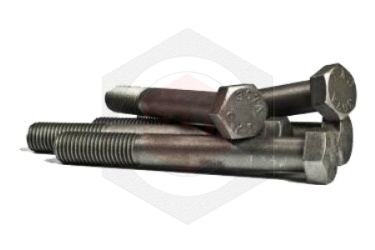

Hex bolts (six sided heads) are the industry standard for fasteners with forged heads. ASTM A307 grade A bolts, all SAE hex bolts, and several other common specifications require a standard (finished) hex head. For specifications such as A307 grade B, A325 and A490 that require a heavy hex pattern, refer to dimensional tolerances for heavy hex bolts or structural bolts.
Applications
Hex bolts can be used for many different applications that include fastening, wood, steel and other construction materials for projects such as docks, bridges, highway structures and buildings. Hex bolts with forged heads are also commonly used as headed anchor bolts.
Manufacturing
Fastindo Wiratama manufactures hex bolts from 1/2″ diameter through 2-1/2″ diameter in most ASTM, AASHTO, and SAE specifications. Special tooling can be created to produce nonstandard head dimensions or bolt heads with your company’s name and/or logo.
Stock:
Diameters: 1/2 – 1″
Grade: ASTM A307, F1554 Grade 36
Lengths: 30″ maximum
Origin: Domestic and import

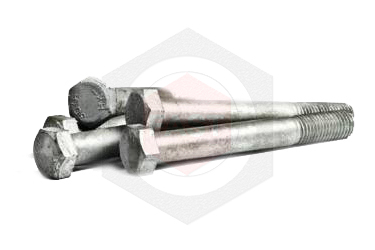

Finish: Black and hot dip galvanized
Standard Thread Length:
Bolt lengths ≤ 6″: Thread length = (2 X diameter) + 1/4″
Bolt lengths > 6″: Thread length = (2 X diameter) + 1/2″
Note: Most stock hex bolts 10″ and longer will have 6″ of thread.

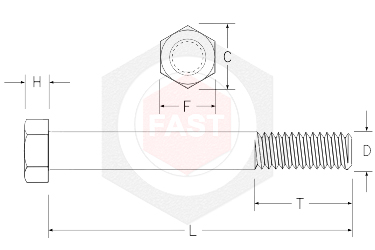

| Hex Bolt Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Bolt Diameter | D | F | C | H | |||||
| Body Diameter | Width Across Flats | Width Across Corners | Height | ||||||
| Max | Basic | Max | Min | Max | Min | Basic | Max | Min | |
| 1⁄2 | 0.515 | 3⁄4 | 0.750 | 0.725 | 0.866 | 0.826 | 11⁄32 | 0.364 | 0.302 |
| 5⁄8 | 0.642 | 15⁄16 | 0.938 | 0.906 | 1.083 | 1.033 | 27⁄64 | 0.444 | 0.378 |
| 3⁄4 | 0.768 | 11⁄8 | 1.125 | 1.088 | 1.299 | 1.240 | 1⁄2 | 0.524 | 0.455 |
| 7⁄8 | 0.895 | 15⁄16 | 1.312 | 1.269 | 1.516 | 1.447 | 37⁄64 | 0.604 | 0.531 |
| 1 | 1.022 | 11⁄2 | 1.500 | 1.450 | 1.732 | 1.653 | 43⁄64 | 0.700 | 0.591 |
| 11⁄8 | 1.149 | 111⁄16 | 1.688 | 1.631 | 1.949 | 1.859 | 3⁄4 | 0.780 | 0.658 |
| 11⁄4 | 1.277 | 17⁄8 | 1.875 | 1.812 | 2.165 | 2.066 | 27⁄32 | 0.876 | 0.749 |
| 13⁄8 | 1.404 | 21⁄16 | 2.062 | 1.994 | 2.382 | 2.273 | 29⁄32 | 0.940 | 0.810 |
| 11⁄2 | 1.531 | 21⁄4 | 2.250 | 2.175 | 2.598 | 2.480 | 1 | 1.036 | 0.902 |
| 15⁄8 | 1.658 | 27⁄16 | 2.438 | 2.356 | 2.815 | 2.616 | 13⁄32 | 1.116 | 0.978 |
| 13⁄4 | 1.785 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 15⁄32 | 1.196 | 1.054 |
| 17⁄8 | 1.912 | 213⁄16 | 2.812 | 2.719 | 3.248 | 3.099 | 11⁄4 | 1.276 | 1.130 |
| 2 | 2.039 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 111⁄32 | 1.388 | 1.175 |
| 21⁄4 | 2.305 | 33⁄8 | 3.375 | 3.262 | 3.897 | 3.719 | 11⁄2 | 1.548 | 1.327 |
| 21⁄2 | 2.559 | 33⁄4 | 3.750 | 3.625 | 4.330 | 4.133 | 121⁄32 | 1.708 | 1.479 |
| Dimensions per ASME B18.2.1 2010 These sizes are readily available in the marketplace and Fastindo Wiratama stocks many of them in varying quantities. If you require a size that is not listed, Fastindo Wiratama will manufacture them. |
|||||||||
| Stock Domestic Hex Bolts | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Length | Diameter | ||||||||
| 5/8" | 3/4" | 7/8" | 1" | ||||||
| Black | Galv. | Black | Galv. | Black | Galv. | Black | Galv. | ||
| 12 | - | 18001 | - | 18010 | - | - | - | - | |
| 14 | - | - | - | 18014 | - | - | - | - | |
| 16 | - | - | 18017 | 18018 | - | 18040 | - | 18054 | |
| 18 | - | 18003 | 18021 | 18022 | - | 18041 | 18055 | 18056 | |
| 20 | - | - | - | 18024 | - | 18042 | - | 18058 | |
| 24 | - | 18005 | 18027 | 18028 | - | 18043 | 18061 | 18062 | |
| 26 | - | - | - | 18030 | - | - | - | - | |
| 30 | - | - | - | 18034 | - | 18045 | - | 18872 | |
| 36 | - | - | - | - | - | - | - | 18877 | |
| These sizes are readily available in the marketplace and Fastindo Wiratama stocks many of them in varying quantities. If you require a size that is not listed, Fastindo Wiratama will manufacture them. | |||||||||
| Stock Import Hex Bolts | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Length (in.) | Diameter | ||||||||
| 1/2" | 5/8" | 3/4" | |||||||
| Black | Galv. | Black | Galv. | Black | Galv. | ||||
| 1 | 10235 | 10236 | - | - | - | - | |||
| 11⁄2 | 10239 | 10240 | 10339 | 10340 | - | - | |||
| 2 | 10243 | 10244 | 10343 | 10344 | 10481 | 10482 | |||
| 21⁄2 | 10247 | 10248 | 10347 | 10348 | - | - | |||
| 3 | 10251 | 10252 | - | - | 10489 | 10490 | |||
| 31⁄2 | 10253 | 10254 | - | - | 10493 | 10494 | |||
| 4 | 10255 | 10256 | - | - | 10497 | 10498 | |||
| 41⁄2 | 10257 | 10258 | 10361 | 10362 | 10499 | 10500 | |||
| 5 | 10259 | 10260 | 10363 | 10364 | 10501 | 10502 | |||
| 51⁄2 | - | - | - | - | 10503 | 10504 | |||
| 6 | 10263 | 10264 | 10367 | 10368 | 10505 | 10506 | |||
| 61⁄2 | 10265 | 10266 | 10369 | 10370 | 10507 | 10508 | |||
| 7 | 10267 | 10268 | 10371 | 10372 | 10509 | 10510 | |||
| 71⁄2 | - | - | 10373 | 10374 | 10511 | 10512 | |||
| 8 | 10271 | 10272 | 10375 | 10376 | 10513 | 10514 | |||
| 81⁄2 | - | - | - | - | 10515 | 10516 | |||
| 9 | 10275 | 10276 | 10379 | 10380 | 10517 | 10518 | |||
| 10 | 10279 | 10280 | 10383 | 10384 | 18320 | 18321 | |||
| 11 | - | - | 10387 | 10388 | 18324 | 18325 | |||
| 12 | 10287 | 10288 | 18310 | 18311 | 18326 | 18327 | |||
| 13 | - | - | - | - | 18409 | 19223 | |||
| 14 | 10295 | 10296 | 18312 | 18313 | 19227 | 19228 | |||
| 15 | - | - | - | - | 19229 | 19230 | |||
| 16 | - | - | 18314 | 18315 | 18410 | 19231 | |||
| 18 | 18777 | 18778 | - | - | - | - | |||
| These sizes are readily available in the marketplace and Fastindo Wiratama stocks many of them in varying quantities. If you require a size that is not listed, Fastindo Wiratama will manufacture them. | |||||||||
